BOURDON TUBE PRESSURE GAUGE IN STAINLESS STEEL

KTN 1611

  • IP66 PROTECTION GRADE
  • ACCURACY ACCORDING TO ASME B.40.1
  • MEASUREMENT IN STAINLESS STEEL A316

Range: Vacuum up to 10,000 psi

Up to 200ºC process temperature

A304 stainless steel case

BOURDON TUBE MANOMETER IN STAINLESS STEEL

FOR AQUEOUS OR GASSEOUS MEDIA

KTN 1611

IP66 PROTECTION GRADE

PRECISION ACCORDING TO ASME B.40.1

MEASUREMENT IN A316 STAINLESS STEEL

Description

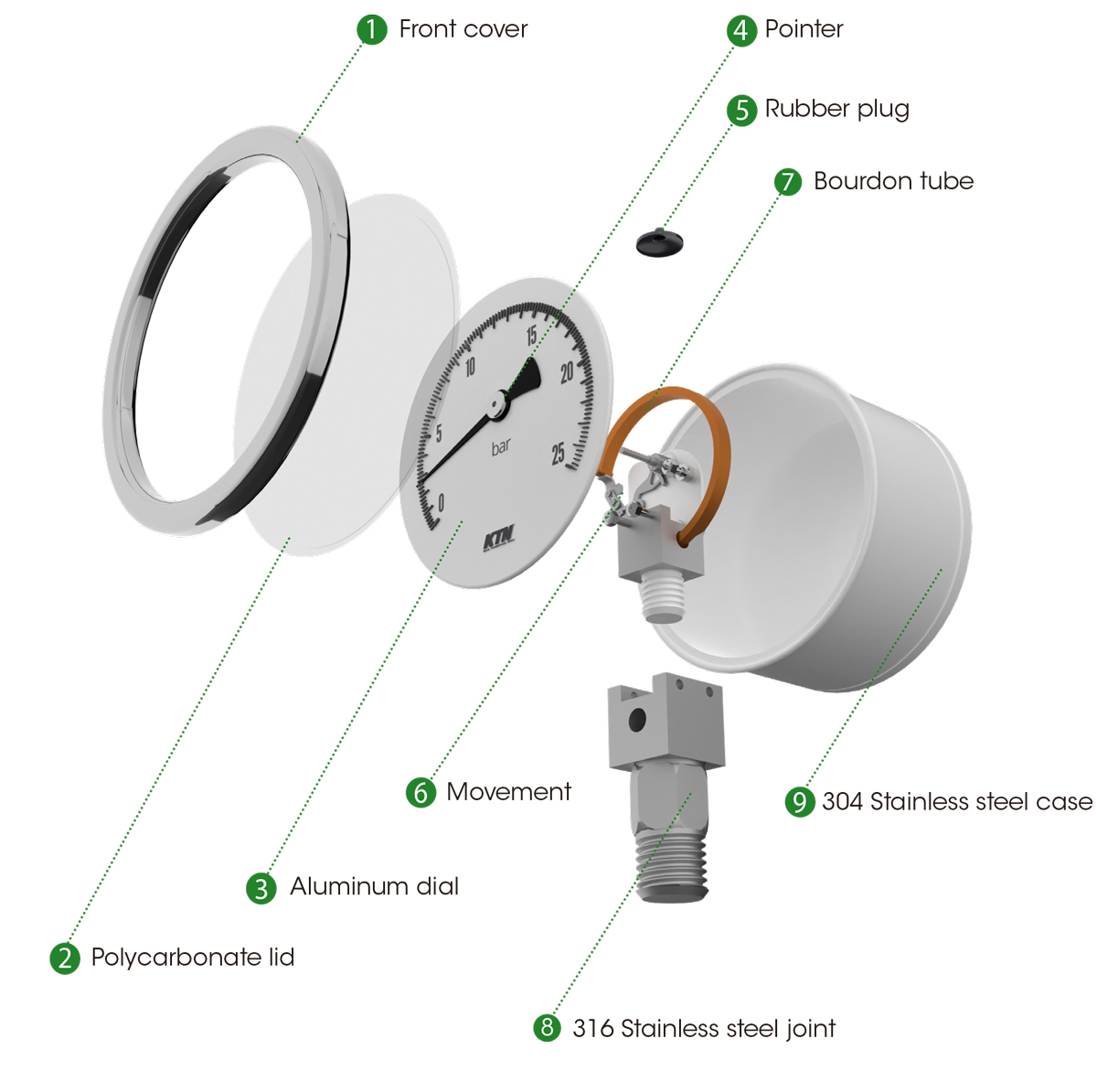

Manometer with Bourdon in AISI 316 L stainless steel

The KTN 1611R pressure gauges with Bourdon tube are manufactured to measure gaseous or liquid media. Manufactured according to ASME B40.1 or EN837-1 standard. The wet parts are made of 316L stainless steel, KTN pressure gauges are designed with a motion stabilizer, they are available in dry and liquid versions. Other notable features are the anti-ejectable temperature compensation disc and the internal vacuum/overpressure stop device. Degree of protection according to IP66. All of our pressure gaskets are tested for helium leaks before packaging.

Our pressure gauges are mainly used in the petroleum, chemical or petrochemical industry. The most common measurement points are found in pipelines or pumping stations.

Scales in stock

Manometer with Bourdon in AISI 316 L stainless steel

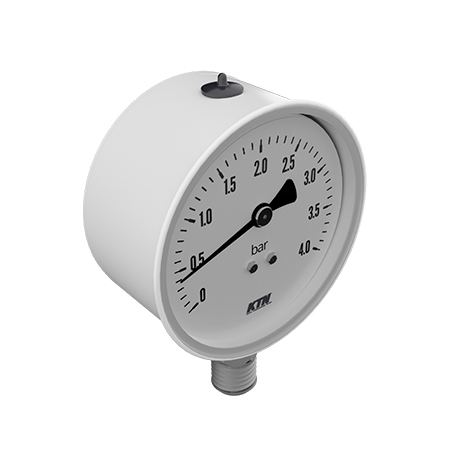

0 to 4 bar

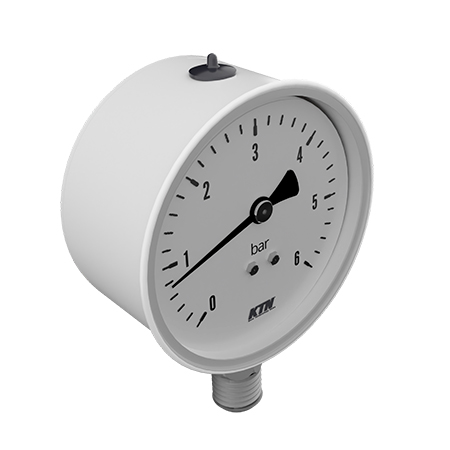

0 to 6 bar

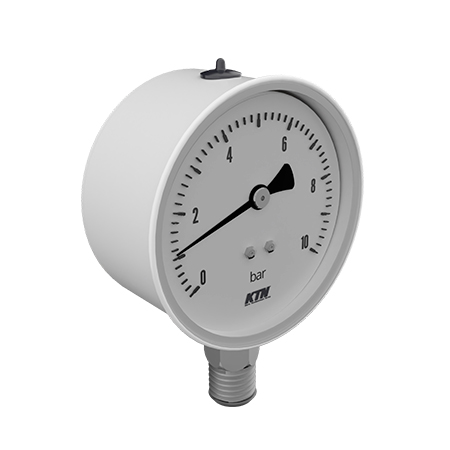

0 to 10 bar

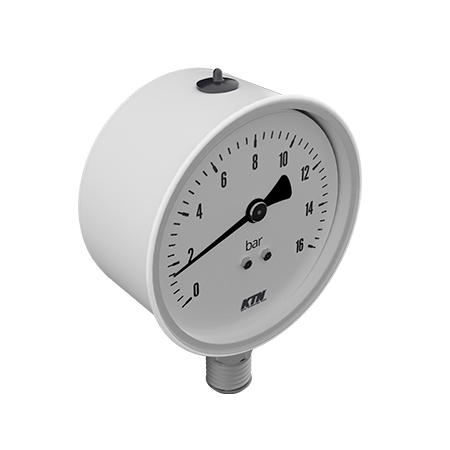

0 to 16 bar
0 to 40 bar
