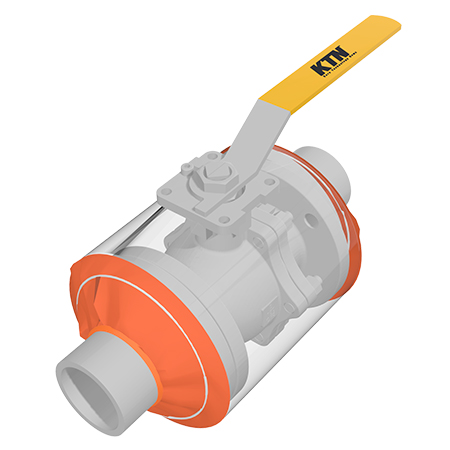

SAFETY GUARD WITH PVC SIGHT GLASS
KTN 13/PVC
- ACID AND ALKALINE RESISTANT
- LEAK WARNING
- BRAIDED POLYPROPYLENE ROPE
Gamme: DN 15 / 600
Transparent screen 360º
Temperature range: -15ºC a +90ºC
SAFETY GUARD WITH PVC SIGHT GLASS
ACID AND ALKALINE RESISTANT
LEAK WARNING
BRAIDED POLYPROPYLENE ROPE
KTN 13/PVC
Gamme: DN 15 / 600
Transparent screen 360º
Temperature range: -15ºC a +90ºC
Description
PREVENT CATASTROPHES WITH OUR PVC FLANGE COVER – KTN 13/PVC
Safety shields are designed to prevent a catastrophe by temporarily containing hazardous leaks and aerosols. Leaks can occur in piping systems carrying chemicals, high temperature liquids and steam, which can harm workers, nearby equipment and the environment.
Leaks of flammable products, such as fuel or oil, can cause fires and explosions. Safety Spray Shields help comply with regulatory standards set by agencies such as OSHA, EPA, MSHA, SOLAS, ABS and DNV and are now required by some insurance companies.
Manufactured with resistant fabrics that contain a pH indicator patch that indicates the leak by immediately changing color to red if it is acidic or to green if it is an alkaline. Our safety guards are ready to be installed quickly and simply by one person.
Customizable sizes for valves
PREVENT CATASTROPHES WITH OUR PVC FLANGE COVER – KTN 13/PVC
Characteristics
PREVENT CATASTROPHES WITH OUR PVC FLANGE COVER – KTN 13/PVC
Complete 360º view
The complete view of the inside of the protector allows a better understanding of the leakage by being able to observe the flanges.
Tongue or signaling strip
Our flanges are used to detect and alert possible leaks of liquids or gases in flanges or valves.
Resistant to acid and alkaline media
The combination of PP and PVC offers high resistance to acidic and alkaline media such as hydrochloric acid and sulfuric acid, as well as strong bases such as sodium hydroxide. It resists corrosion and deterioration of the material when in contact with aggressive acids or bases.
Polyvinyl chloride
The film is made of polyvinyl chloride which makes it resistant to corrosion, chemicals and weathering.
PP fiber fabric ends
Polypropylene (PP) rope is a type of rope made from polypropylene fibers, a thermoplastic polymer widely used in industry. PP rope is known to be lightweight, resistant to moisture and chemicals, and to have good abrasion resistance..
Dispersion port
