COMPACT TYPE ELECTRIC ACTUATOR
RKE 002-008 SERIES
- 4-PIECE DURABLE INDICATOR
- EASY TO INSTALL / MAINTAIN
- EFFICIENT MOTOR
- TP DEVICE
Nominal Torque: 8Nm / 1200Nm
Voltage: 110V – 440V / 24V
Protection Grade: IP67

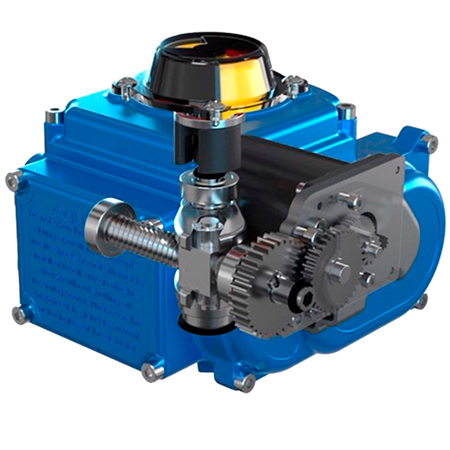

COMPACT TYPE ELECTRIC ACTUATOR
Technical Specifications:
Nominal Torque: 8Nm / 1200Nm
Voltage: 110V – 440V / 24V
Protection Grade: IP67

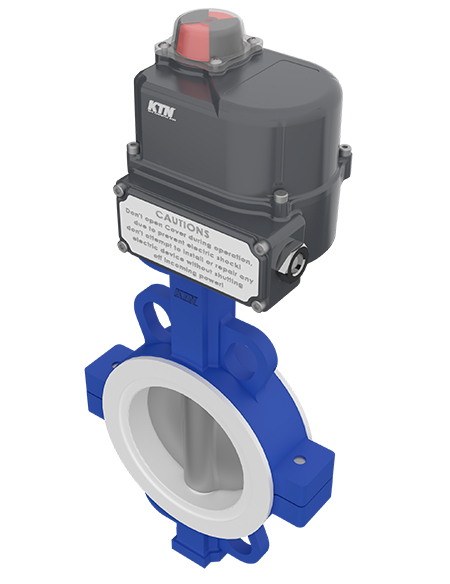

Technical Features

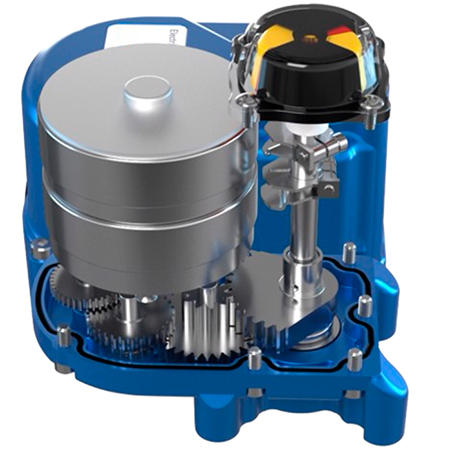

QUARTER-TURN ELECTRIC ACTUATOR – RKE SERIES
Our quarter-turn electric actuator is available in explosion-proof versions and in both rack and pinion and Scotch yoke models, with torques ranging from 8NM to 1200NM. It includes a four-piece plastic injection indicator that prevents paint discoloration from sunlight. This three-way indicator, composed of keys, allows for easy color distinction. The separate terminal box provides users with only the necessary information, reducing wiring errors. Additionally, it features a dedicated motor, specially designed to withstand high temperatures within sealed products and consume less energy. The temperature protection device (TP) in AC prevents motor damage.
On/Off
Standard Open/Close, power to open, power to close. Remains in position in case of power loss.
Plastic injection indicator
This four-piece plastic injection indicator prevents paint discoloration from sunlight. It features a three-way indicator composed of keys, allowing for easy color distinction.

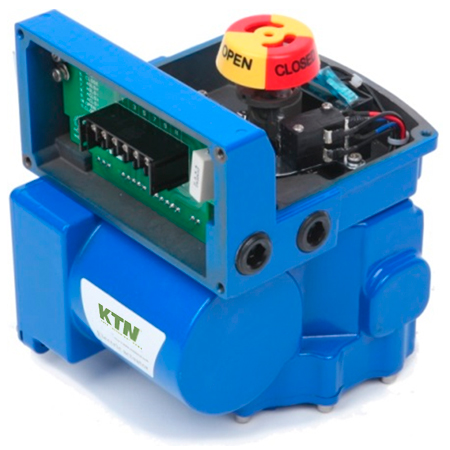

Separate terminal box
The separate terminal box concisely provides users with only the information they need, reducing wiring errors.
Dedicated motors
The motors specially designed for actuators can withstand high temperatures within sealed products and are designed to consume less energy.
Temperature protection
The AC features a temperature protection device (TP) to prevent motor damage.
Actuator selection guide
QUARTER-TURN ELECTRIC ACTUATOR – RKE SERIES
| MODEL | MAX TORQUE (N-m) | OPERATING TIME 50/60 Hz (seg) | NOMINAL VOLTAGE (A) | MOTOR INSULATION / OUTPUT (AC-DC) | MANUAL TURNS | ||
| AC (1PH) 50/60Hz | DC | ||||||
| 110V | 220V | 24V | |||||
| RKE002 | 20 | 17.5/14.5 | 0.29/0.25 | 0.12/0.1 | 1.5 | E-B/10W-10W | 3 |
| #RKE002-10N | 10 | 7/6 | 0.29/0.25 | 0.12/0.1 | 1.5 | E-B/10W-10W | 3 |
| RKE004 | 40 | 12/10 | 0.67/0.6 | 0.23/0.2 | 2 | E-B/10W-10W | 3 |
| #RKE004-15N | 15 | 8.5/7 | 0.67/0.6 | 0.23/0.2 | 2 | E-B/10W-10W | 3 |
| RKE005 | 50 | 13 | (100~250V AC) 01~0.25 | 2 | B-B/10W-10W | 18 | |
| #RKE005-20N | 20 | 6 | (100~250V AC) 01~0.25 | 2 | B-B/10W-10W | 18 | |
| RKE006 | 60 | 18/15 | 0.67/0.6 | 0.23/0.2 | 2 | E-B/10W-10W | 3 |
| #RKE006-25N | 25 | 8/6.5 | 0.67/0.6 | 0.23/0.2 | 2 | E-B/10W-10W | 3 |
| RKE008 | 80 | 17/14 | 0.53/0.50 | 0.33/0.29 | 2.5 | F-B/10W-10W | 20 |
| #RKE008-40N | 40 | 8/6 | 0.53/0.50 | 0.33/0.29 | 2.5 | F-B/10W-10W | 20 |
