COMPACT ELECTRIC ACTUATOR KTN 200-400NM
SERIES 200-400NM
- COMPACT DESIGN
- MULTIVOLTAGE
- FAST OPERATION
- FAILSAFE OPTION
- COLOR OLED DISPLAY
Nominal Torque : 200Nm (1770 in.lbs)/400Nm (3450)
Voltage: 24VAC/DC or 95-265VAC
Protection Rating: IP67 / Nema 4x
COMPACT ELECTRIC ACTUATOR KTN 200-400NM
Technical Specifications:
Nominal Torque : 200Nm (1770 in.lbs)/400Nm (3450)
Voltage: 24VAC/DC or 95-265VAC
Protection Rating: IP67 / Nema 4x
Technical Features
COMPACT ELECTRIC ACTUATOR: OPTIMAL PERFORMANCE AND ADVANCED CONTROL – SERIES 200-400
The KTN 200-400 series offers electric actuators with up to 400Nm of torque. With a PC+PET housing and IP67 protection, they are ideal for industrial environments. They include an OLED display to view the status and adjust parameters via the SmartMenu. Advanced features include modulation, failsafe modulation, Modbus RS485/RTU, and smart diagnostics to monitor critical components such as motor RPM and ambient temperature.
On/Off
Standard Open/Close, power to open, power to close. Stays put on loss of power.
Failsafe/Modulating Failsafe
High Speed / Modulating High Speed
This actuator allows for fast opening and closing, with a runtime 50% faster than the standard, achieving 1 second in the 10, 20, and 50Nm series with a 24VDC motor. Additionally, it offers modulating control through 4-20mA, 0-10V, or 2-10V, enabling a movement from 4mA to 20mA in 1 second (only for the 10, 20, and 50 series with DC motor).
Smart Menu
All of our Smart actuators come with a SmartMenu featuring password-protected firmware. Once the password is entered, you can change parameters such as speed, working angle, failsafe position, 3-position configuration, and much more.
Timer
Through our SmartMenu, the Timer series allows programming a 24/7 timer with up to 60 operations (open/close movements) per day. Intelligent functionality without the need for a PLC.
Modbus
Modbus RS485/RTU and CANBus are available as standard to connect the actuator to a BUS system. Through the BUS communication protocol, you can read the actuator’s position, detect errors, and more. We also offer Modbus TCP/IP upon request.
Other protocols will be available soon.
Feedback
All of our actuators have open/close feedback. The basic models use mechanical switches, the Smart series uses electronic relays, and the modulating models have a modulation output (e.g., 4-20mA) instead of end-of-travel feedback.
3 Positions
Through the SmartMenu, you can configure the actuator in 3 positions (open, close, and intermediate) or set it to 0-90-180 degrees for 3-way valves. This flexibility allows precise adaptation of the actuator to various applications.
Local Control
Through the SmartMenu, the smart actuators allow manual operation via touch buttons on the screen. Protected by a password, it offers electronic manual override, facilitating opening and closing when power is available.
Easy installation
Specifications
COMPACT ELECTRIC ACTUATOR: OPTIMAL PERFORMANCE AND ADVANCED CONTROL – SERIES 200-400
| Standard Specifications | B200-400 Basic | S200-400 Smart |
| Max Rated torque Nm output (in.lbs) | 250Nm Break (2212) / Run 200Nm (1770) | 250Nm Break (2212) / Run 200Nm (1770) |
| Max Rated torque Nm output (in.lbs) | 450Nm Break (3982) / Run 400Nm (3540) | 450Nm Break (3982) / Run 400Nm (3450) |
| Voltage Range | 24VAC/DC or 95-265VAC | 24VAC/DC or 95-265VAC |

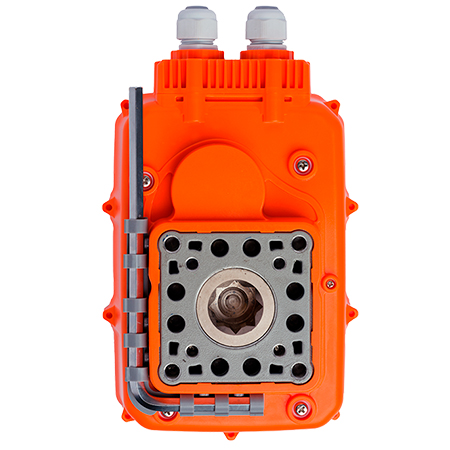

| Mounting (ISO5211) x drive (female octagon) | F07 & F10 x 22mm | F07 & F10 x 22mm |
| Standard Run Time | 25 seconds | 25 seconds |
| Electrical Connection | Terminal strip via gland | Terminal strip via gland |
| End of travel confirmation (dry contact/volt-free) | 2x Mechanical micro-switches | 2x Electronic relays |
| LED Status | LED open/close | LED open/close/alert |
| Actuator Dimensions & Weight in Kg | Height 170.6mm x Width 159.4mm x Lenght 266.7mm / Weight 2kg | Height 170.6mm x Width 159.4mm x Lenght 266.7mm / Weight 2kg |
