PLUG VALVE
KTN X3 / X2
- Lubricated tapered plug design
- Metal or PTFE sealing depending on the model
- Manual or automated operation
- Full port or reduced port (depending on configuration)
- High resistance to pressure and wear
- Low operating torque (thanks to internal lubrication)
Size range: DN15 to DN300
Class: 150/300/600/900/1500
Design standard: API 599 / API 6D
PLUG VALVE
Lubricated tapered plug design
Metal or PTFE sealing depending on the model
Manual or automated operation
Full port or reduced port (depending on configuration)
High resistance to pressure and wear
Low operating torque (thanks to internal lubrication)
KTN X3 / X2
Size range: DN15 to DN300
ANSI Class 150 / 300 / 600 / 900 / 1500
Design according to API 599 / API 6D
Flanges according to ANSI B16.5 / DIN
Testing according to API 598
Description
HIGH PRESSURE ANSI PLUG VALVE – KTN X3 / X2
The ANSI lubricated plug valve KTN X3/X2 is a robust and highly reliable solution, designed to meet the demands of the most critical industrial processes. Its lubricated tapered plug design allows smooth opening and closing of the flow, ensuring an efficient seal even under high pressure and continuous service conditions.
Manufactured in carbon steel or stainless steel, it offers excellent mechanical and chemical resistance, making it a durable choice against wear and corrosion. Depending on the configuration, it can incorporate PTFE or metal-to-metal sealing, adapting to different types of fluids and operating conditions.
The KTN X3/X2 valve can operate across a wide range of temperatures and pressures, commonly used in high pressure applications (ANSI 150/300/600). In addition, its design reduces operating torque, facilitating handling and improving overall system efficiency.
This product can be complemented with automation kits for remote control or integration into industrial systems.
We keep this product in stock for immediate delivery in standard sizes from 1/2″ to 12″. Larger sizes, special configurations, and custom materials are available upon request, allowing full adaptation to specific project requirements.
Features

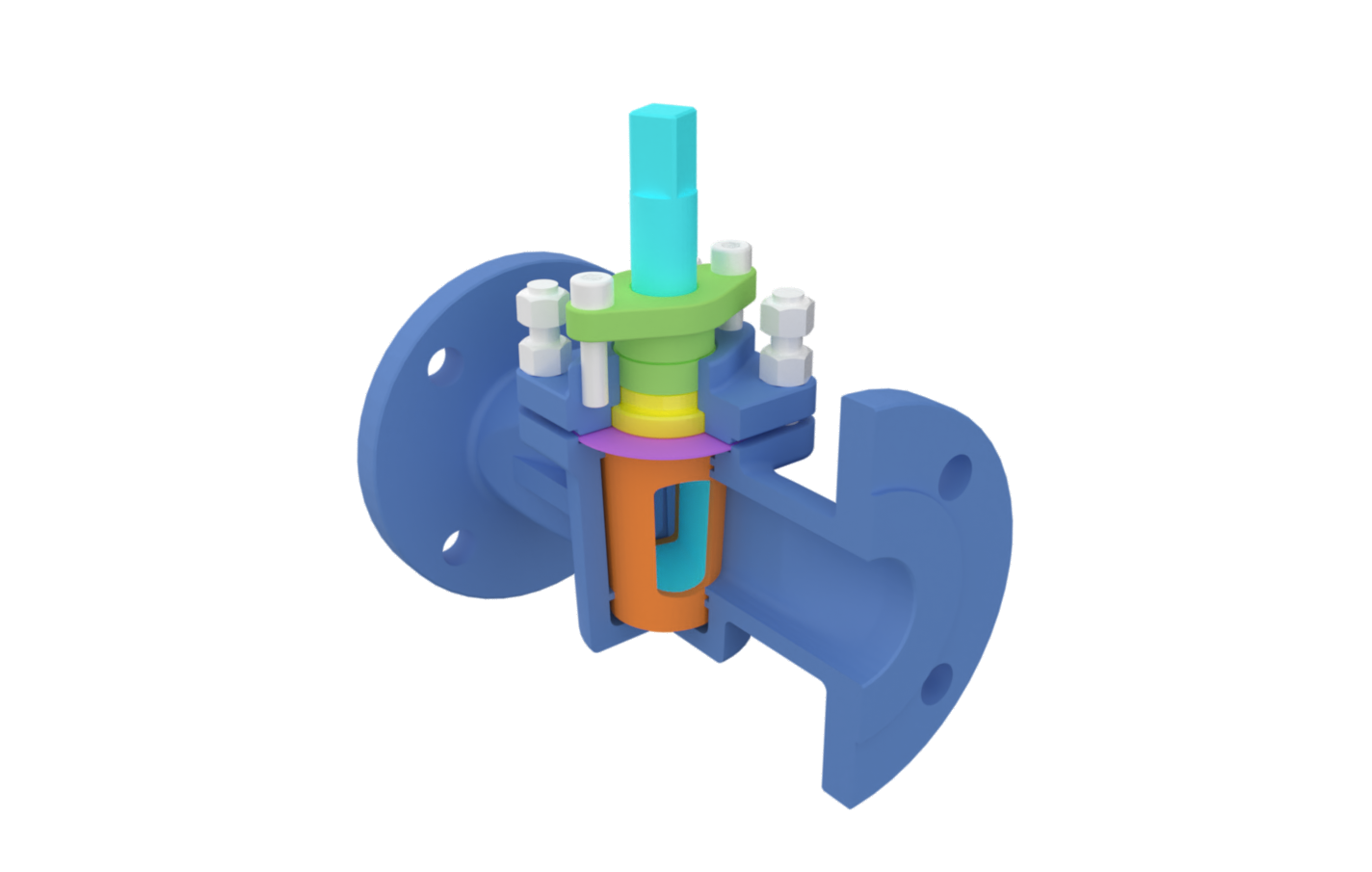

HIGH PRESSURE ANSI PLUG VALVE – KTN X3 / X2
Plug
Stem
Body
Sealing interface
Spacing collar
The precision spacing collar maintains optimal compression of internal components, ensuring consistent sealing performance over time. It allows fine adjustment of the assembly, balancing tight shut-off with low operating torque.
Packing & Gland system
The advanced PTFE-based packing system, combined with a stainless steel gland, ensures leak-free stem sealing and excellent chemical resistance. This design enhances operational safety, minimizes emissions and allows easy maintenance in long-term service.
Downloads
HIGH PRESSURE ANSI PLUG VALVE – KTN X3 / X2
Data Sheet KTN X3/X2
Data Sheet KTN X2 -3T
Catalog KTN
