CARBON STEEL BODY CHECK VALVE WITH DIN FLANGES
KTN 523
Range: DN 50 / 250
PN 6 / 40
Temperature/pressure range: API 598
CHECK VALVE CARBON STEEL BODY DIN FLANGES
PN 6 / 40
KTN 523
Range: DN50 / 250
PN 6 /40
Temperature/pressure range: API 598
Description

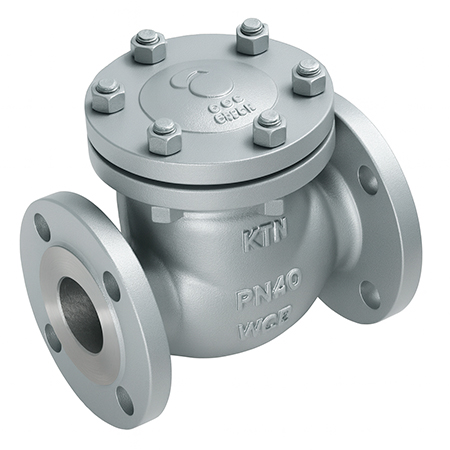

CAST CARBON STEEL BODY CHECK VALVE PN 6 / 40 – KTN 523
The KTN 523 is our check valve with DIN flanges. The body is made of carbon steel, while the disc and spring are made of stainless steel casting AISI 316. The size range covers from DN 50 to 250. Pressure and temperature ratings comply with API 598. Suitable for retaining the flow of aqueous media, oil, and gas.
Features
CAST CARBON STEEL BODY CHECK VALVE PN 16/40 – KTN 523
Standard design:
API 6D
Body:
ASTM A351 CF8M stainless steel / ASTM A216 WCB carbon steel
Face-to-face dimensions:
ASME B16.10
Pressure/temperature range:
API 598
Test:
API 598
Pressure:
PN 6 / PN40
Media:
Water, oil, gas, and acids
